Home > M8 Connectors >

Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight

Product Categories
Kronz (guangzhou) Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

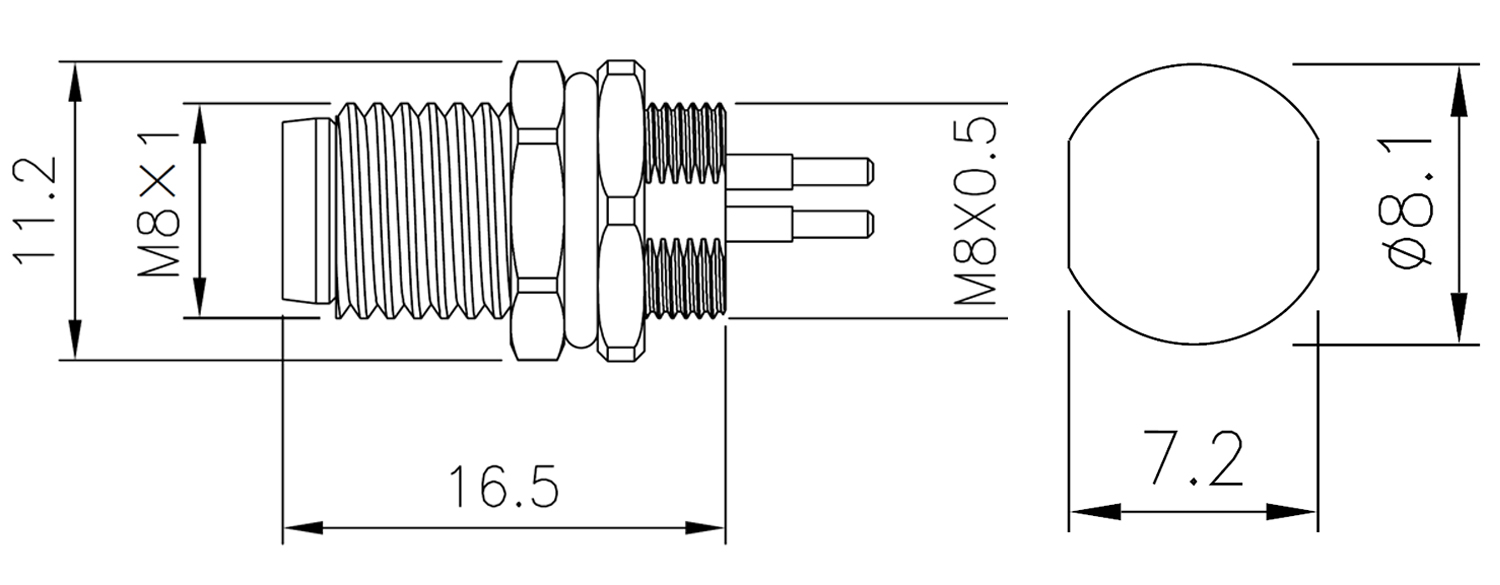

Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight

  • 1
  • 2

Brand Name : KRONZ

Model Number : F0806M-PR/M8

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Description : M8 connector

Mounting Type : Rear

Housing Material : Brass,nickel-plated

Material : Brass,gold-plated

Contact Resistance : ≤5mΩ

Degree of Protection : IP67

Contact Now

Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight
Product Attributes
Attribute Value
Description M8 connector
Mounting Type Rear
Housing Material Brass, nickel-plated
Material Brass, gold-plated
Contact Resistance ≤5mΩ
Degree of Protection IP67
Product Description

M8 Panel Mount Connector 6 Pin Male A Code Rear Mounting PCB Version Straight

In security monitoring applications, M8 flange connectors provide critical performance advantages. Their compact design meets space requirements while offering excellent interference resistance, ensuring stable connections between cameras, monitors, and other equipment for high-quality image and data transmission.

Key applications include:

  • Outdoor monitoring equipment - withstands harsh weather conditions while maintaining stable connections
  • Complex electromagnetic environments - effectively resists interference for clear, continuous monitoring signals
Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight
Technical Specifications
Specification Value
Standard IEC 61076-2-104
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details

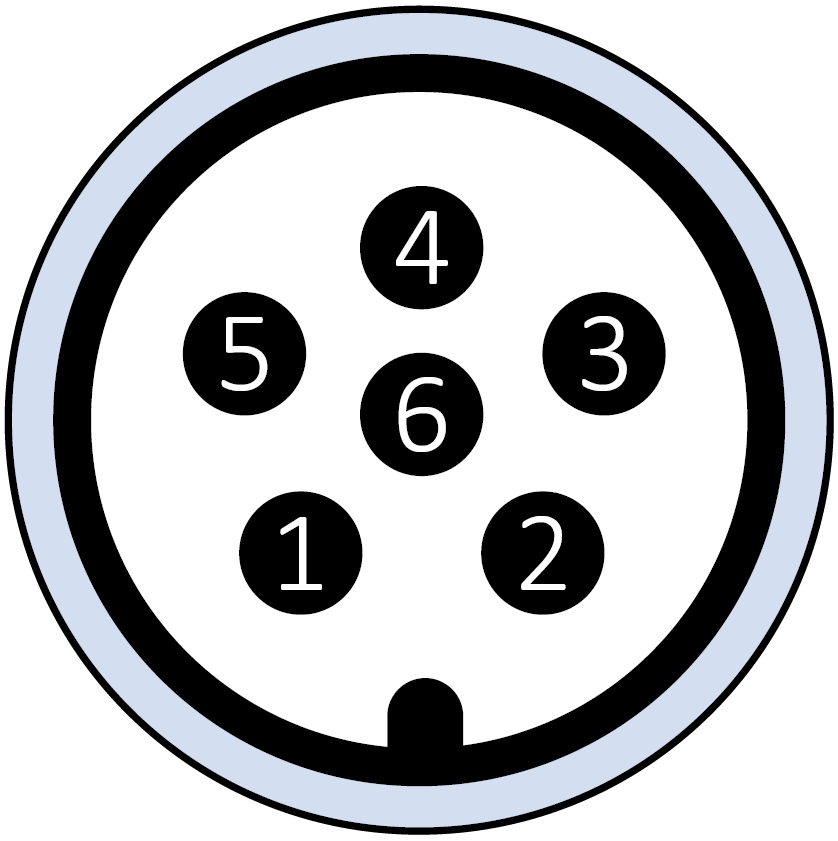

Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Model No.
Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight Rear mounting A 3A 60V Straight PCB version M0806M-PF/M8
