Angled Female M12 Connectors 4 Pin

Name: Angled Female M12 Connectors 4 Pin
Brand: KRONZ
Price: 1 USD

Angled Female M12 Connectors 4 Pin Manufactures

Brand Name : KRONZ

Model Number : M1204FA-2/P00R

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Product name : M12 Connectors with molded cable

Seal material : FPM/FKM

IP rate : IP67

Insulation Resistance : ≥ 100MΩ

Contact resistance : ≤ 5mΩ

Standard : IEC 61076-2-101

Ambient temperature : -25~+85℃

Mating cycles : >100

Contact Now

M12 Connectors with Molded Cable Female Angled 4 Pin IP67 IEC 61076-2-101

Product Description

M12 wired connector, male and female injection molded integrated sensor,Integrated shell, injection molding, stable signal, gold plating process, thread design.This M12 pre cast on-site connector single head, with a wire length of 1M/2M/3M/5M/10M, is in stock and supports customization of other sizes. For more details, please consult our customer service. Thank you.

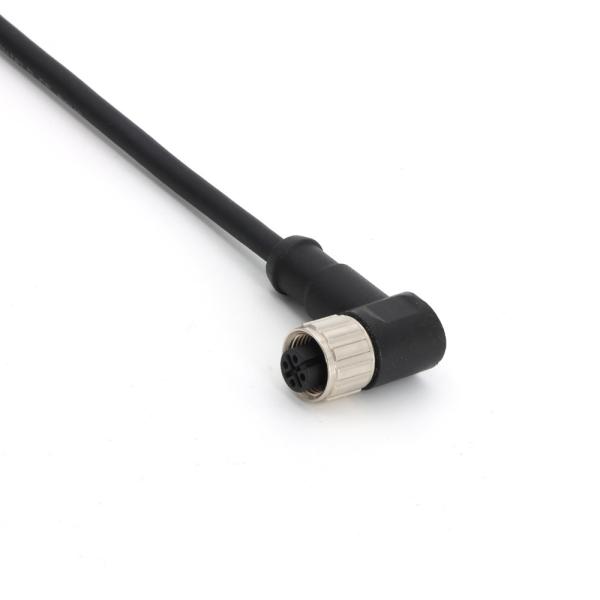

Angled Female M12 Connectors 4 Pin

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Connection method	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1=BN 2=WH 3=BU 4=BK	A	4A	250V	4×0.34 (4×22AWG) PVC, black	Angled	2M	M1204FA-2/P00R
							5M	M1204FA-5/P00R
							10M	M1204FA-10/P00R
