Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors

Name: Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors
Brand: KRONZ
Price: 1 USD

Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors Manufactures

Model Number : M1205FA-2/POOR

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Brand Name : KRONZ

Certification : CE

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Product name : M12 Pre-Assembled Cable Connector

Color : Black

Material : Alloy

IP rate : IP67

Endurance(shell) : >100 cycles

Insulation Resistance : ≥ 100MΩ

Contact resistance : ≤ 5mΩ

Ambient temperature : -25~+85℃

Contact Now

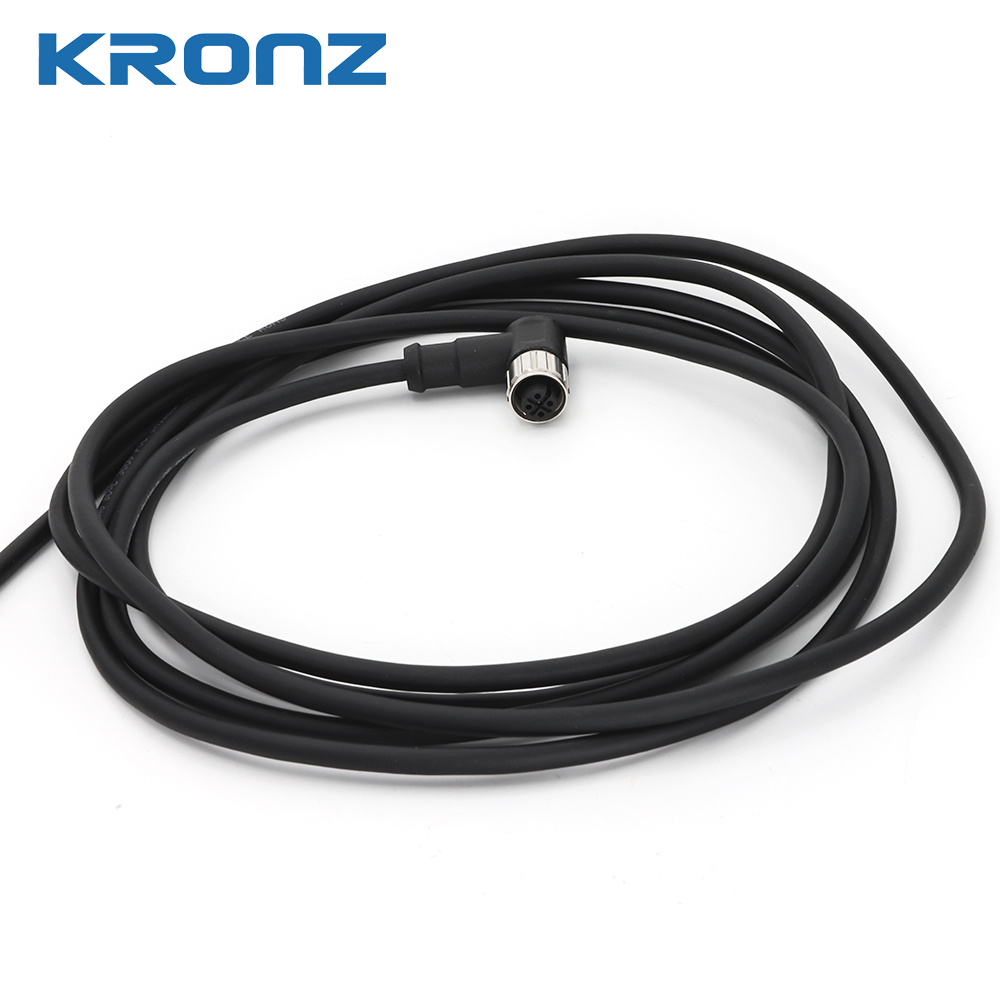

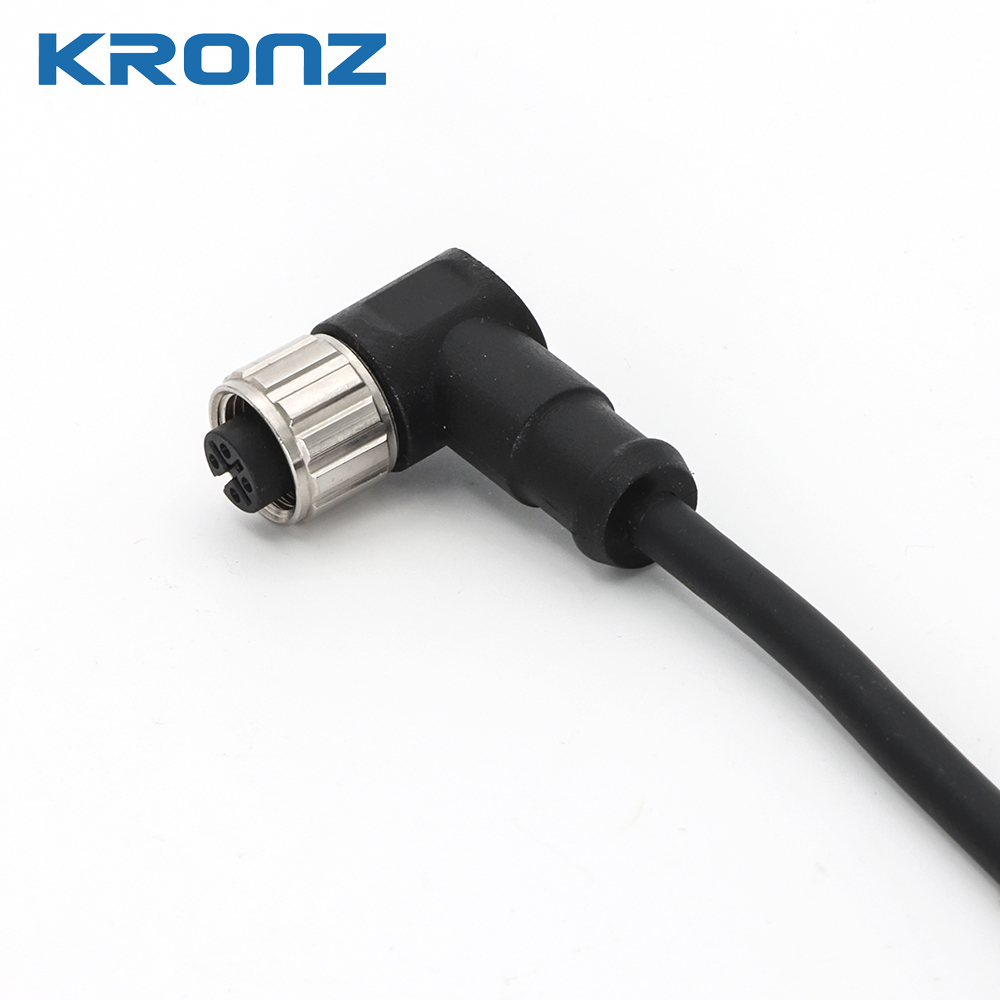

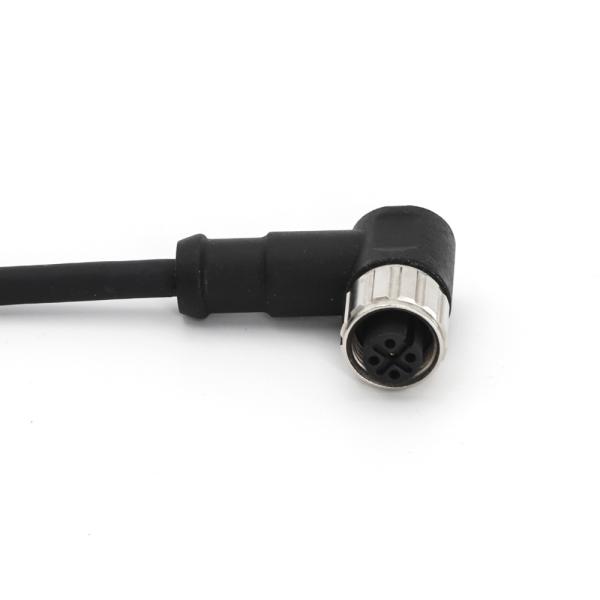

M12 Angled Circular Connector Female 5 Pin Pre-assembled Cable Connectors

Product Description

M12 connectors are also available as molded cable assemblies, offering pre-configured solutions with different cable lengths and specifications, cable specifications and sizes can be customized according to customer requirements.

Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

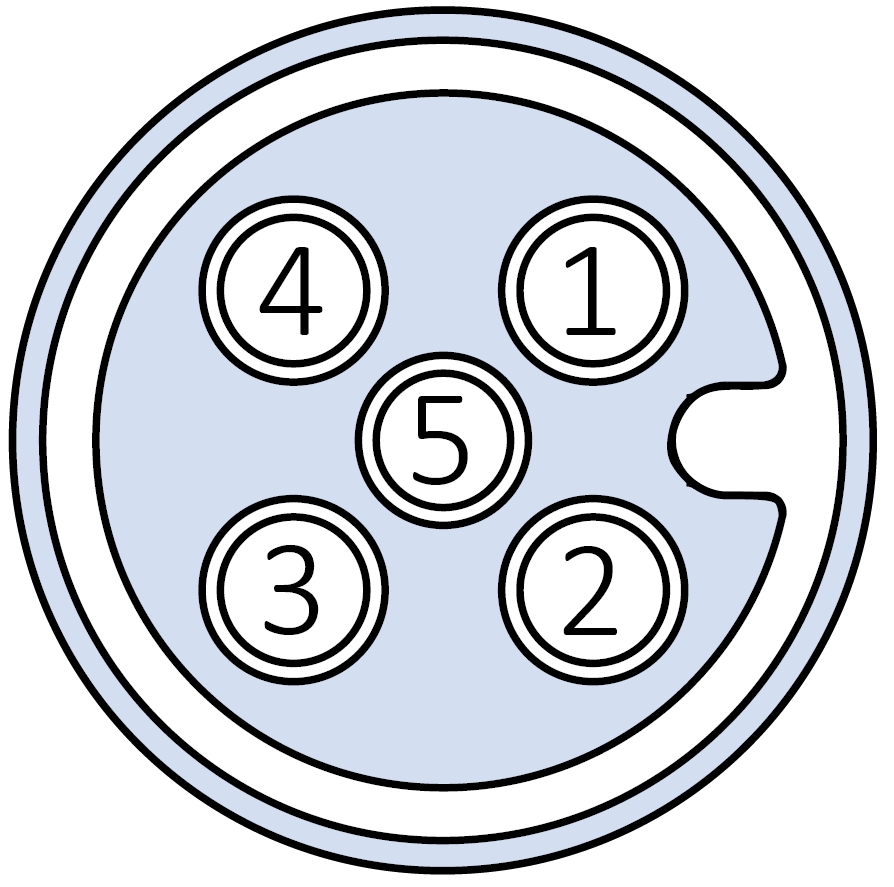

Pin assignment	Connection method	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1=BN 2=WH 3=BU 4=BK 5=GY	A	4A	60V	5×0.34 (5×22AWG) PVC, black	Angled	2M	M1205FA-2/POOR
							5M	M1205FA-5/POOR
							10M	M1205FA-10/POOR
