Gold Plated M12 Connector 4 Pin IP67 For Signal And Power Connections

Name: Gold Plated M12 Connector 4 Pin IP67 For Signal And Power Connections
Brand: KRONZ
Price: 1 USD

Gold Plated M12 Connector 4 Pin IP67 For Signal And Power Connections Manufactures

Model Number : H1204MV-0

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Brand Name : KRONZ

Certification : CE

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Description : M12 Male Field-wirable Assembly Connector

Color : Siliver

Material : Brass,gold-plated

IP rate : IP67

Endurance(shell) : >100 cycles

Insulation Resistance : ≥ 100MΩ

Contact Resistance : ≤ 5mΩ

External cable diameter : 4-8mm

Contact Now

M12 Connector 4 Pin Gold-plated and Durable for Heavy-duty Applications

Product Description

In robotic systems, M12 connectors are used for signal and power connections. Their compact size and secure locking mechanism make them ideal for applications requiring reliable and stable connections.

Gold Plated M12 Connector 4 Pin IP67 For Signal And Power Connections

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Zinc alloy, nickle-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

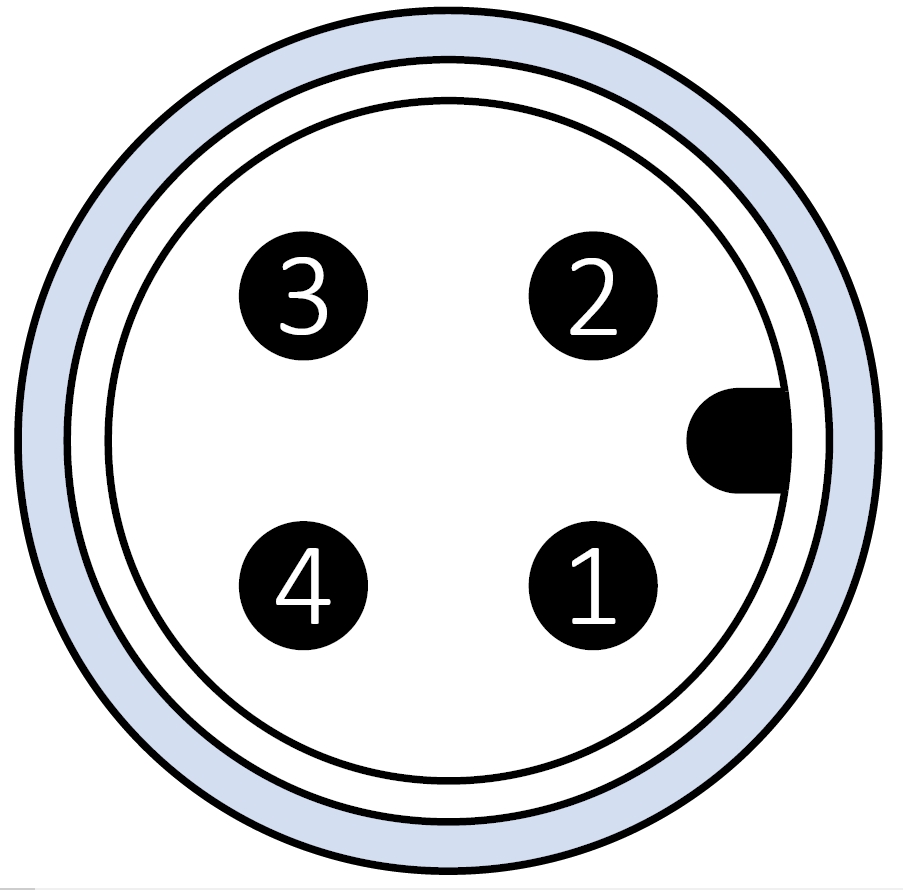

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	4A	250V	Straight	4-8mm	H1204MV-0

Product Tags:

Gold Plated M12 Connector 4 Pin

M12 Connector 4 Pin IP67

Gold Plated M12 Connector

Gold Plated M12 Connector 4 Pin IP67 For Signal And Power Connections Images
