NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed

Name: NPN NC M12 Inductive Proximity Sensor IP67 1030VDC Quasi Flush Installed
Brand: KRONZ
Price: 1 USD

NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed Manufactures

Brand Name : KRONZ

Model Number : IS2-M12NO51-M0A/S

Certification : CE

Place of Origin : Guangdong, China

MOQ : 10 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Detection Distance : 2mm

Detected Object : Magnetic metal

Output Function : NPN NO

Response Frequency : 800Hz

Ambient Temperature : -25 to+70°C

Insulation Resistance : >50MΩ

Connection type : M12 Connector

Protection grade : IP67

Contact Now

Inductive Sensors with M12 Connector Quasi-flush Installation 10-30VDC NPN NC

Product Description

The M12 inductive sensor is commonly used in automation and industrial control systems to detect the presence or position of metal objects. It features a quasi-flush mounting style, allowing the sensor to be flush with the installation surface, making it suitable for applications with limited space or where a smooth, flat appearance is required. The NPN normally open type is one of the common output configurations, where the output signal switches to a low level when a metal object is detected, enabling control and alarm functions.

■ Installation type: Quasi-flush
■ Sensing range Sn: 2mm
■ Output function: NPN,NO
■ Supply voltage: 10-30VDC
■ Connection type: M12 connector
■ Housing material: Brass,nickel-plated

NPN NC M12 Inductive Proximity Sensor IP67 10-30VDC Quasi Flush Installed

Technical Data

Installation Type	Quasi-flush
Sensing Range(Sn)	2mm
Detected Object	Magnetic metal
Standard Detection Object(iron)	12x12x1mm
Set Distance	0-1.6mm
Tolerance Distance	Detection distance below 10%
Response Frequency	800Hz
Working Voltage	10-30VDC
Max. load Current	200mA
Voltage Drop	<1V
LED Display	Red
Protection circuit	Surge protection circuit,short circuit protection,polarity reversal protection
Ambient temperature	During operation:-25 to+70°C(no freezing,no condensing)
Ambient humidity	During operation and shorage: 35-95%RH(no condensing)
Effect of temperature	Temperature range-25 to 70°C,with a detection distance within ±10% for every 20°C change
Effect of voltage	When the rated power supply voltage fluctuates within ±15%,the detection distance changes within ±1%
Insulation resistance	＞50MΩ
Withstand voltage	AC1000V
Vibration resistance	10 to 55 Hz, up and down amplitude 1.5 mm in the X, Y, and Z directions for each 2 hours.
Impact resistance	500m/S ², 10 times in each direction of X, Y and Z
Connection type	M12 Connector
Sensing surface meterial	PBT
Protection grade	IP67

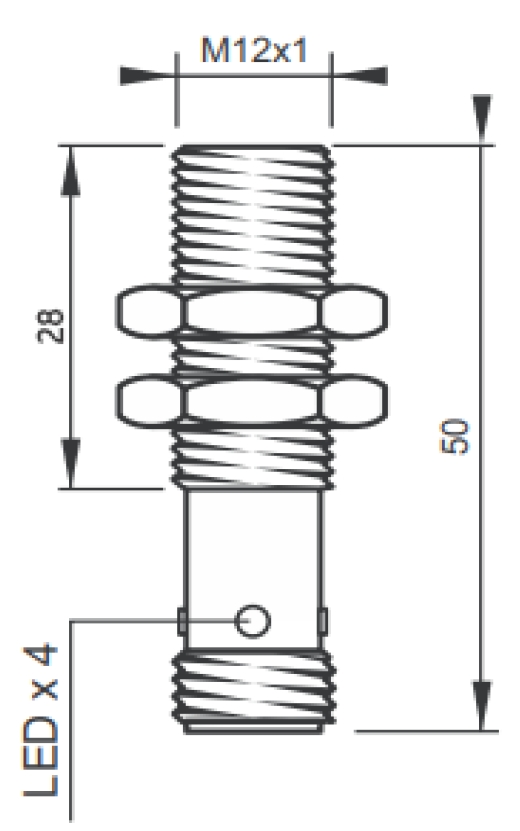

Dimensional Drawing	Wiring Diagram
