U12 Ultrasonic Sensor Detection Range 20-200mm NPN PNP Switching Output NO/NC

Product Categories

Kronz (guangzhou) Electronics Co., Ltd.

Contact Now

Name: U12 Ultrasonic Sensor Detection Range 20200mm NPN PNP Switching Output NONC
Brand: KRONZ
Price: 1 USD

Brand Name : KRONZ

Model Number : U12-D200N(P)1T-R00A

Certification : CE

Place of Origin : Guangdong, China

MOQ : 5 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Description : Ultrasonic Sensors 20-200mm

Inpuy Type : Teach-in and Synchronization

Connection : 4 pin, M12 connector

Load Impedance : I/ ＜ 300 Ohm,U/ ＞ 1k Ohm

Blind zone : 0-20mm

Resolution : 0.1mm

Initialization time : ＜ 500ms

Ambient Temperature : -25℃ ~+70℃（248~343K）

Contact Now

U12 Ultrasonic Sensor Detection Range 20-200mm NPN PNP Switching Output NO/NC

Product Description

Main Feature:

▶ M12 installation threaded sleeve, the shortest full length is only 57mm

▶ Small blind zone, small sound cone, suitable for close-range fine detection

Basic Feature:

▶ 1 pc npn or pnp switching output

▶ Realize detection distance learning function through white lines

▶ Temperature compensation

▶ Standard operating voltage DC 10-30V

Model	U12-D200N(P)1T-R00A
Dection range	20-200mm
Blind zone	0-20mm
Resolution	0.1mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	22ms
Switching hysteresis	1mm
Switching frequency	45Hz
Initialization time	＜ 500ms
Supply voltage	10-30V DC,reverse-polarity protection
Red LED	no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED	object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection	200mA,Red LED and Green LED flashing at the same time
Load impedance	I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating	IP67
Connection type	4pin, M12 connector
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	20g
Output type	N2: 1 npn switching output NO/NC
Output type	P2: 1 pnp switching output NO/NC

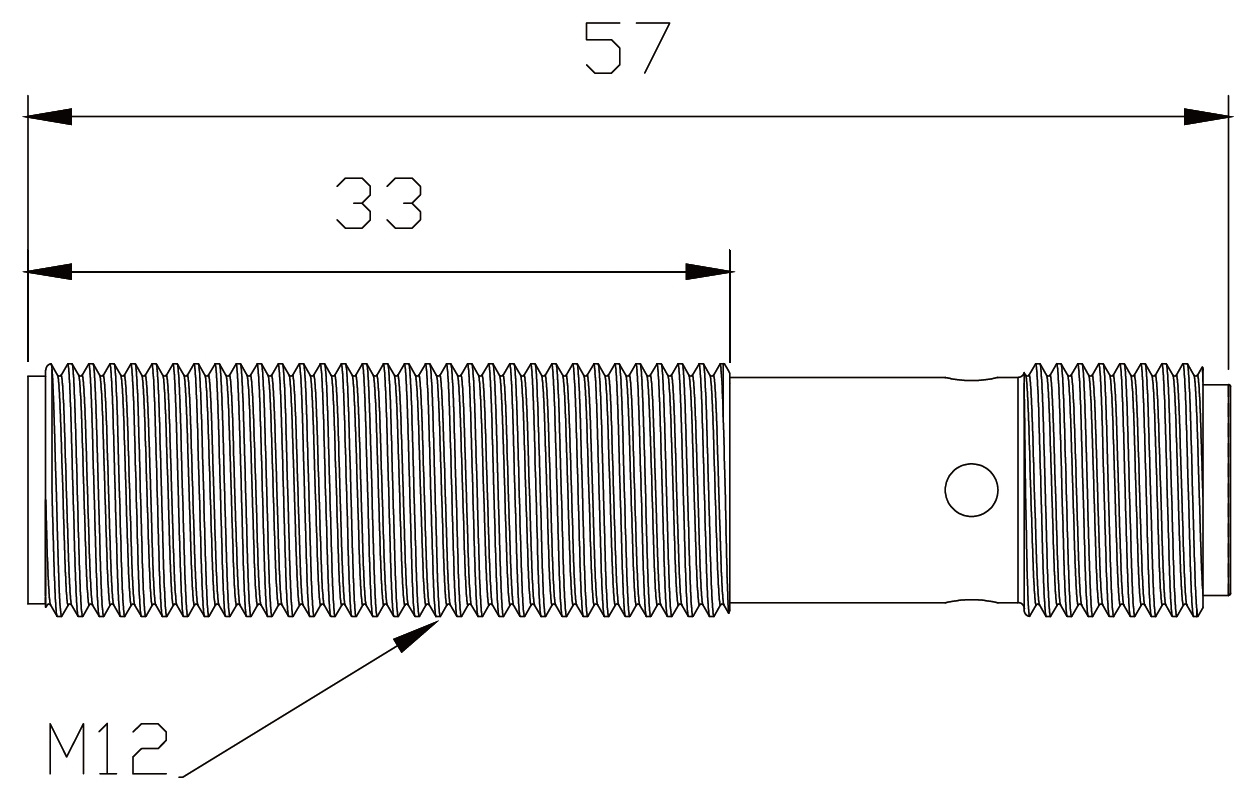

Dimensional drawing
