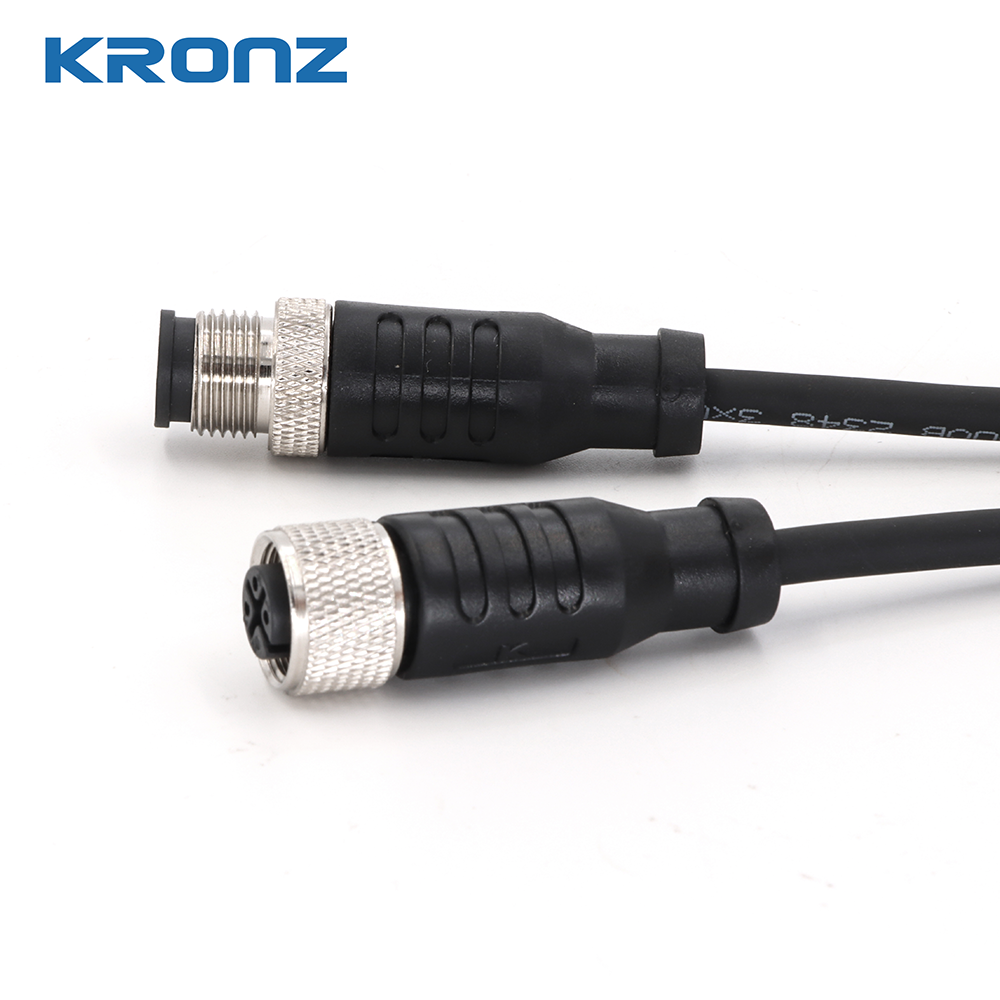

M12 Connector with Pre-assembled Cable 4 Pin A Code PVC Cable Sensor Connector
Product Description
The M12 4 pin Connector is designed to last, with a mating cycle of >100. This means that you can use this M12 Sensor Connector over and over again without worrying about it wearing out or becoming damaged. The seal material used in this M12 Connector is FPM/FKM, which provides excellent resistance to chemicals and high temperatures, ensuring that it can be used in even the most challenging environments.
This M12 Connector comes with a variety of cable lengths, including 1M, 2M, 3M, 5M, 10M, and 15M. This means that you can choose the cable length that is best suited to your needs, whether you need a short cable for a compact installation or a longer cable for a larger setup.
If you are looking for a high-quality M12 Connector that is reliable, durable, and versatile, then the M12 3 pin Connector is an excellent choice. Whether you are working on a small-scale project or a larger installation, this M12 Sensor Connector is sure to meet your needs and exceed your expectations.
Technical Data
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

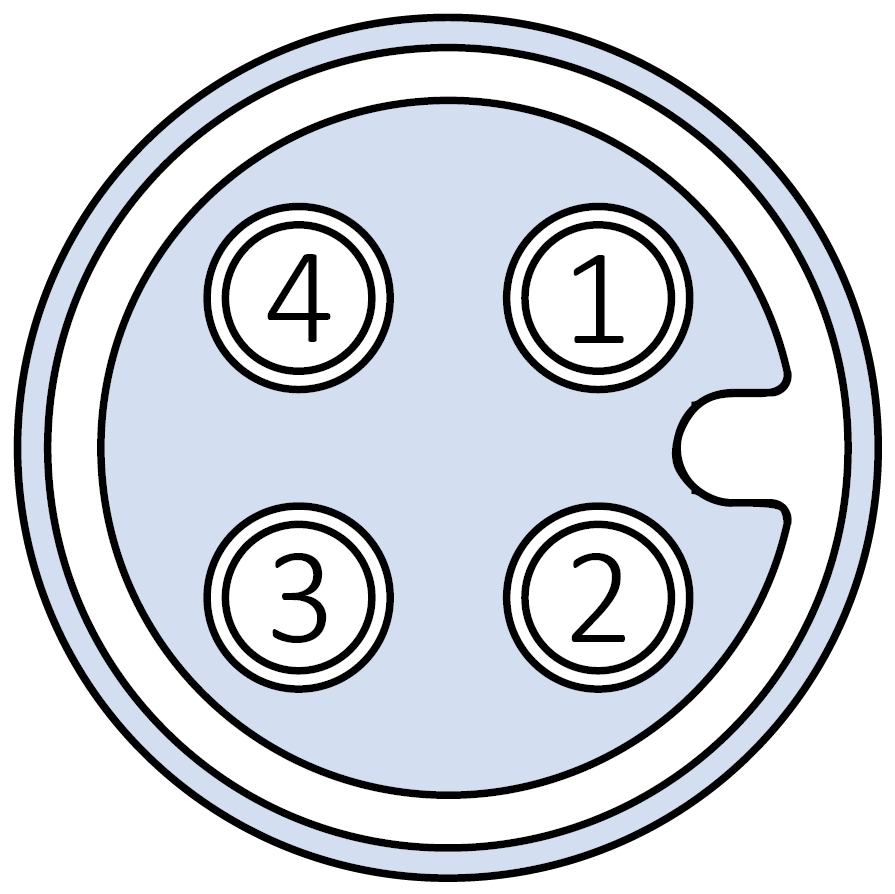

| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
 | 1=BN 2=WH
3=BU
4=BK | A | 4A | 250V | 4×0.34
(4×22AWG)
PVC, black | Straight | 5M | M1204F-5/P00K |
Applications
The M12 Connector is a compact and robust connector that is designed to withstand harsh environmental conditions. It has an insulation resistance of ≥100MΩ, which ensures a reliable connection. The cable outlet is straight, which makes it easy to install in tight spaces. The coding is A, which ensures that the connector is connected in the correct orientation. The housing material is TPU, Black, which provides excellent resistance to chemicals and UV radiation. The pollution degree of 3 makes it suitable for use in environments with moderate pollution.
