M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded

  • 1
  • 2

Brand Name : KRONZ

Model Number : M1208XF-2-M1208XM/E60K

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Description : X code IE cable connector M12

Code : X-coding

Contact : Male to Female

Contact nut material : Nickle-plated

Gender : Female and Male

Cable type : Cate6A

Application : Ethernet

Cable Length : 2m...10m

Contact Now

M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female to Male PVC Drag Chain Shielded

Product Description

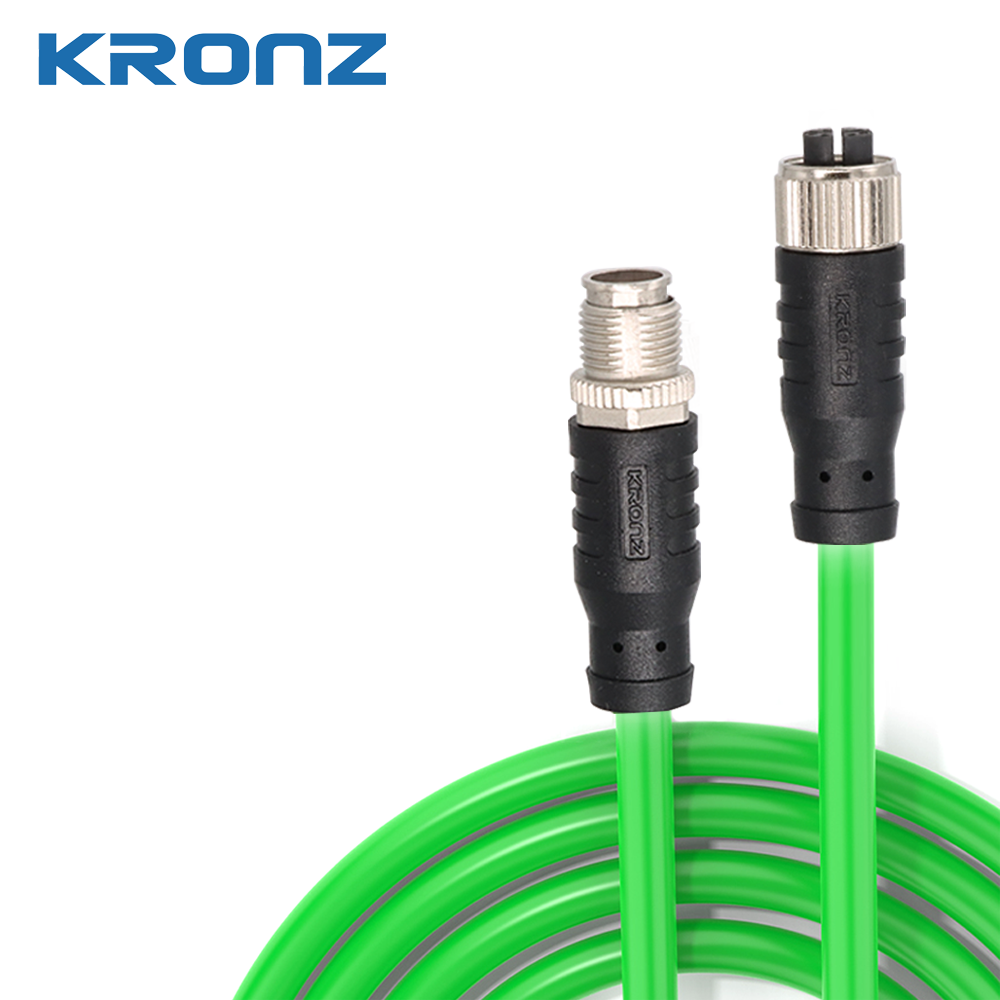

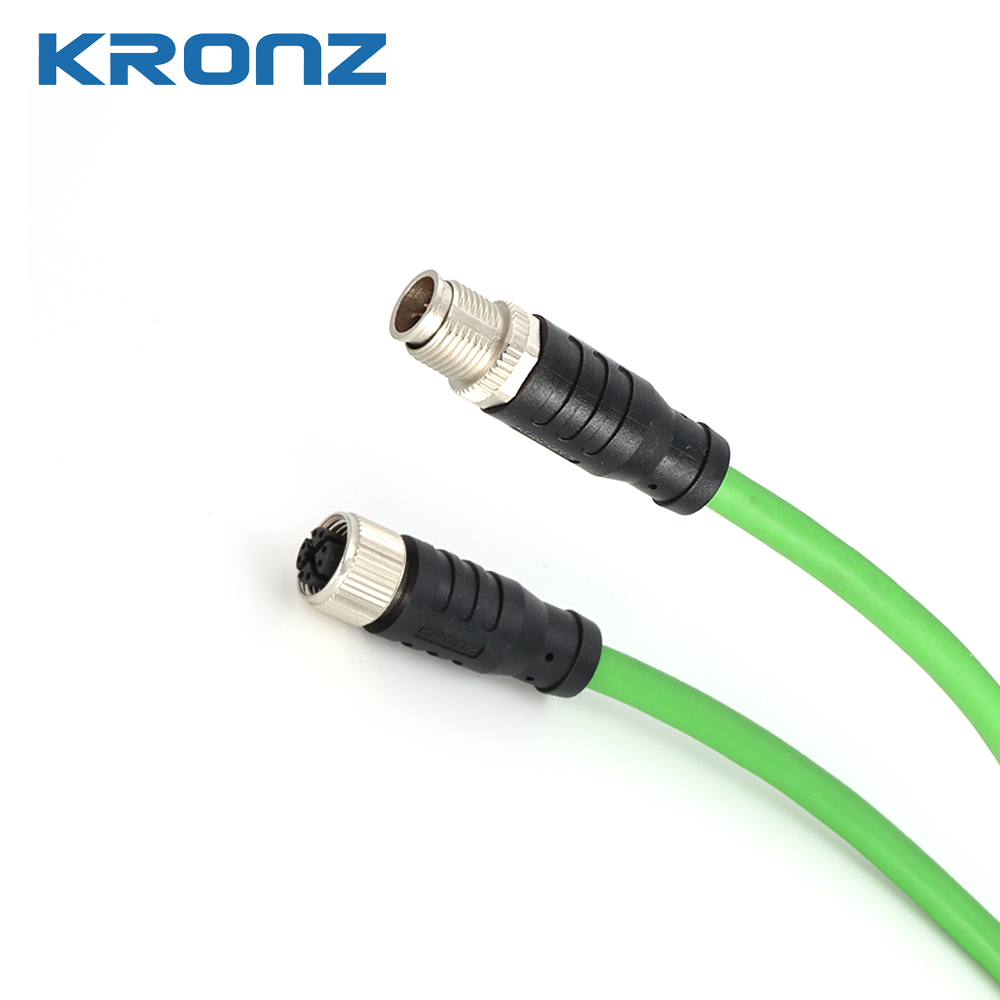

The M1208XF-2-M1208XM/E60K has a female connector at one end and a male connector at the other end, and its length can be customized according to customers' requirements. This network cable is specifically designed for industrial scenarios, and its straight cable outlet adopts X-coding. The internal cable specification is a Category 6A cable with 4×2×0.14 (26 AWG). It is covered with a yellow-green PVC drag chain sheath, possessing extremely high durability and wear resistance. The double-shielded design endows it with excellent protection performance and outstanding anti-interference ability. The M12 connectors are widely used in the field of industrial automation, especially in applications with high requirements for reliability and anti-vibration performance.​

M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain ShieldedM12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded

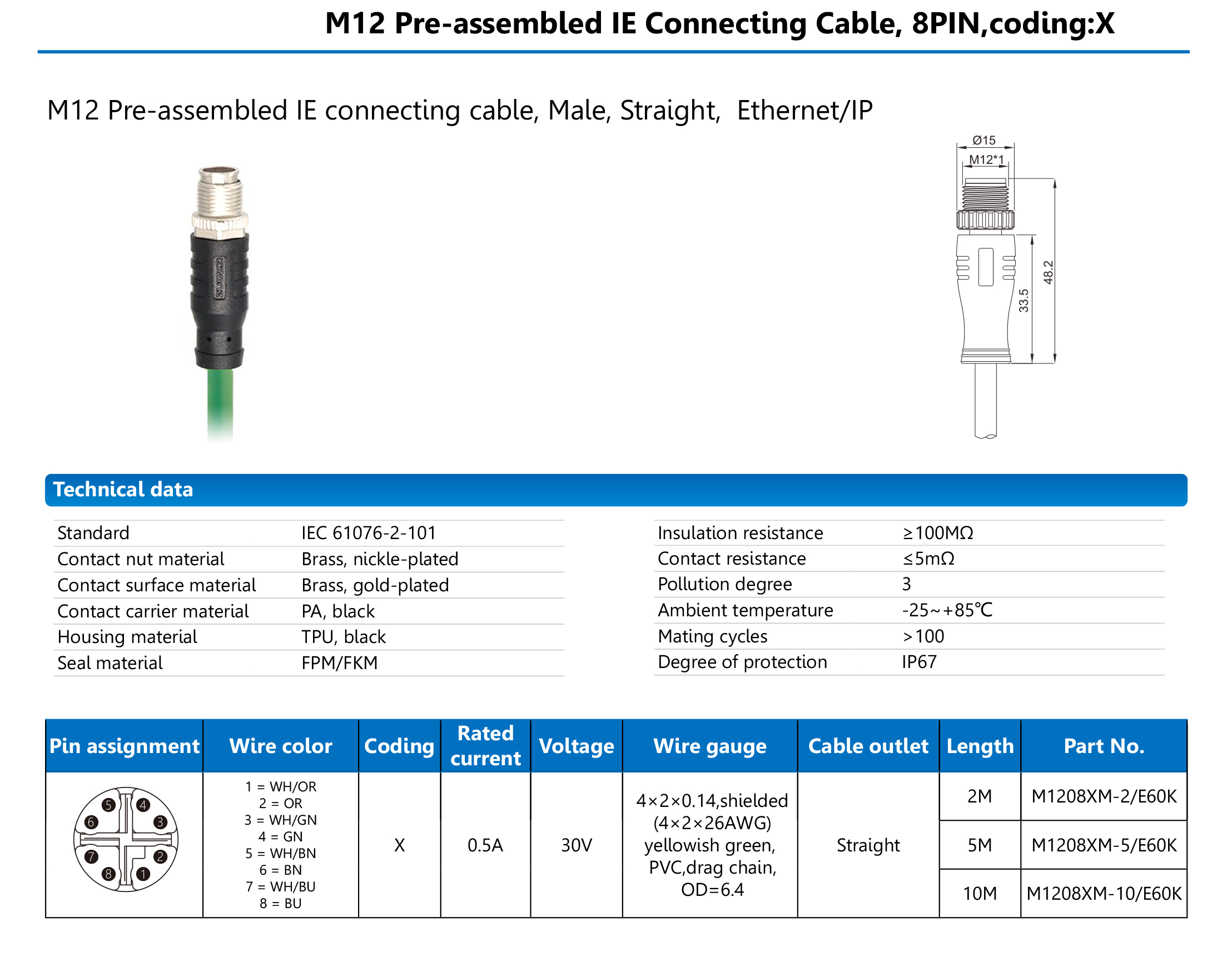

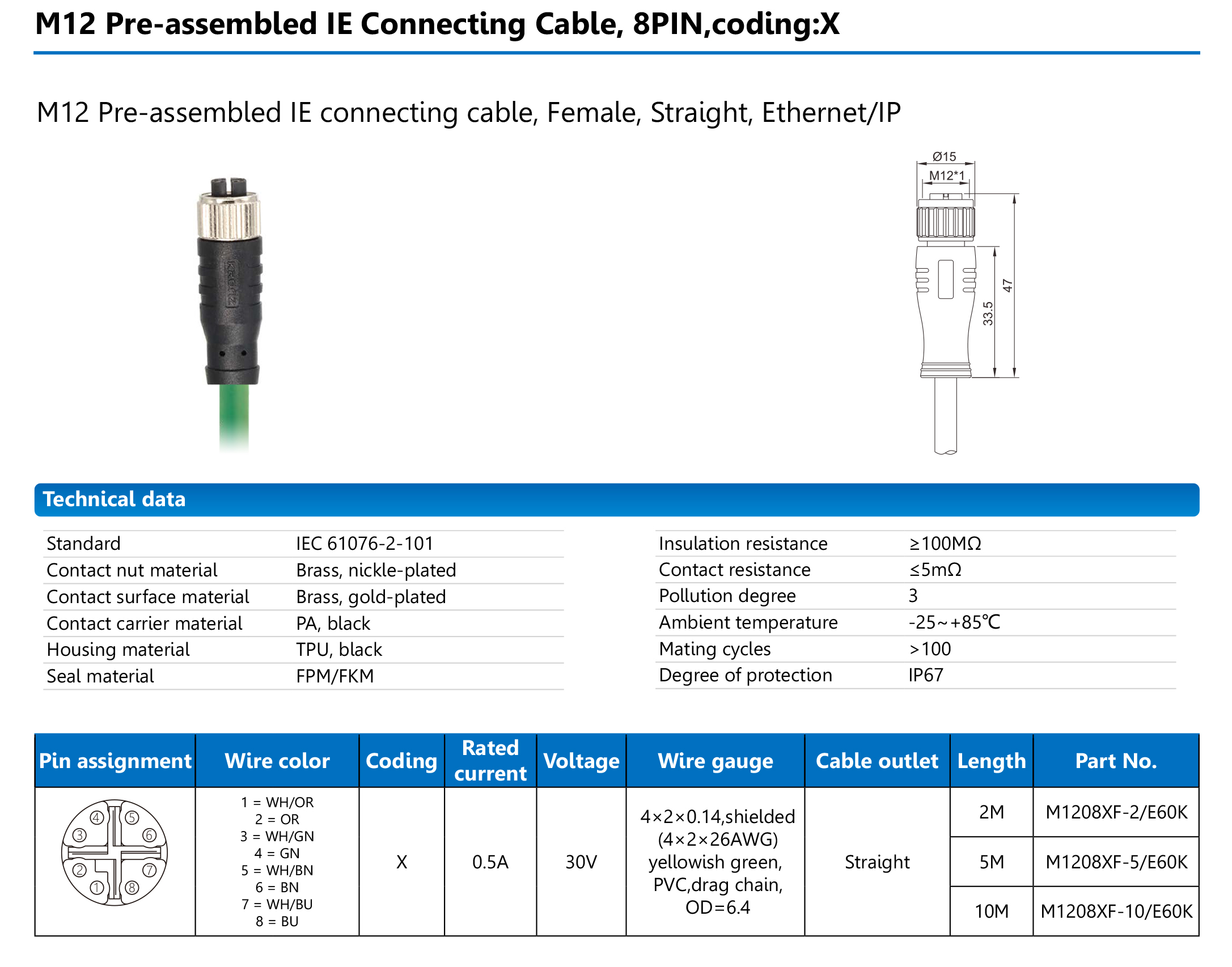

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain ShieldedM12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded

M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded
